內置式衛星導航陶瓷天線

產品

編號

簡述

PDF

下載

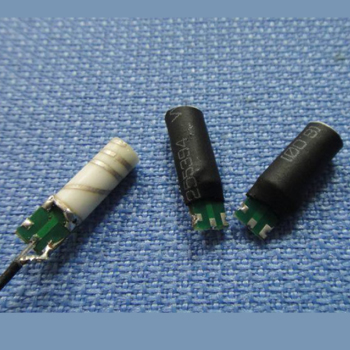

IA100B

Operation temperature: -25°C to +85°C
Frequency range: 1575-1610MHz
OD6mm x 17.5mm (+/-0.5mm)
Bandwidth :100Mhz

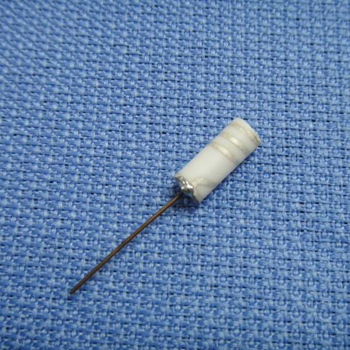

IA-100-GPS

Operation temperature: -35°C to +85°C
Frequency range:
1575MHz
OD5mm x 12mm ( without pcb and touch Line)

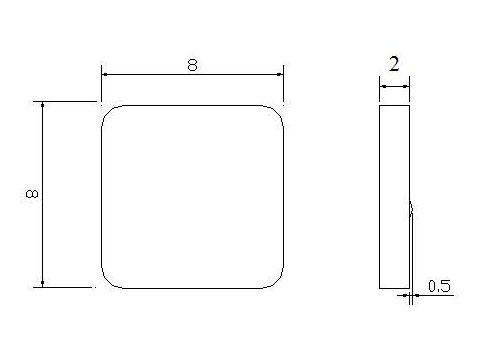

PA-08-SMD

This design patents are pending from China, Taiwan, USA.

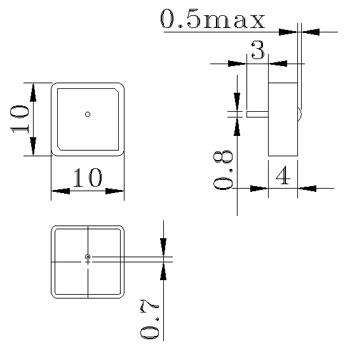

PA-10

Length：1.6mm (Can depend on the customer demand change, the suggestion length1.9mm & 3.0mm)
Outer diameter：0.8mm

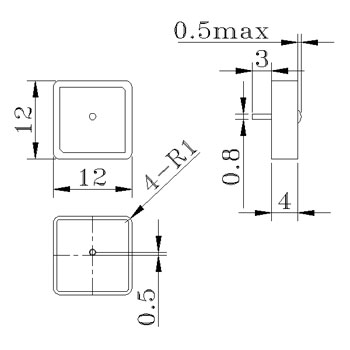

PA-12

Length：1.6mm (Can depend on the customer demand change, the suggestion length1.9mm & 3.0mm)
Outer diameter：0.8mm

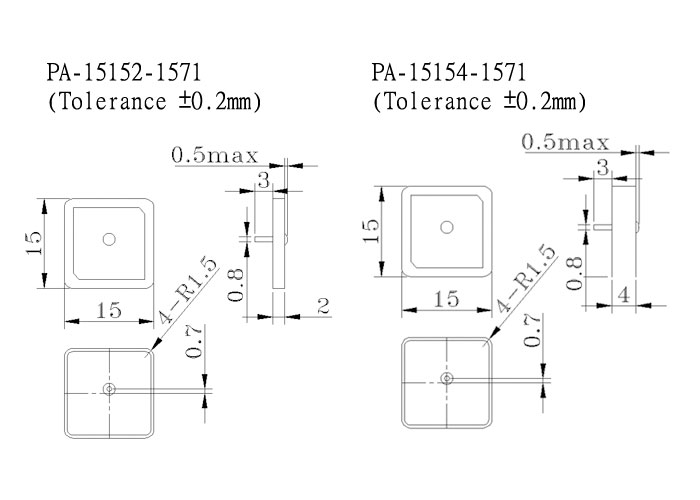

PA-15

Length：1.6mm (Can depend on the customer demand change, the suggestion length1.9mm & 3.0mm)
Outer diameter：0.8mm

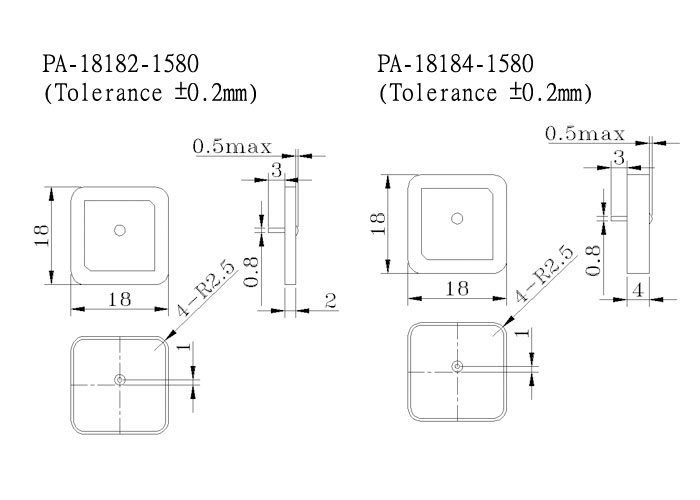

PA-18

Length：1.6mm (Can depend on the customer demand change, the suggestion length1.9mm & 3.0mm)
Outer diameter：0.8mm

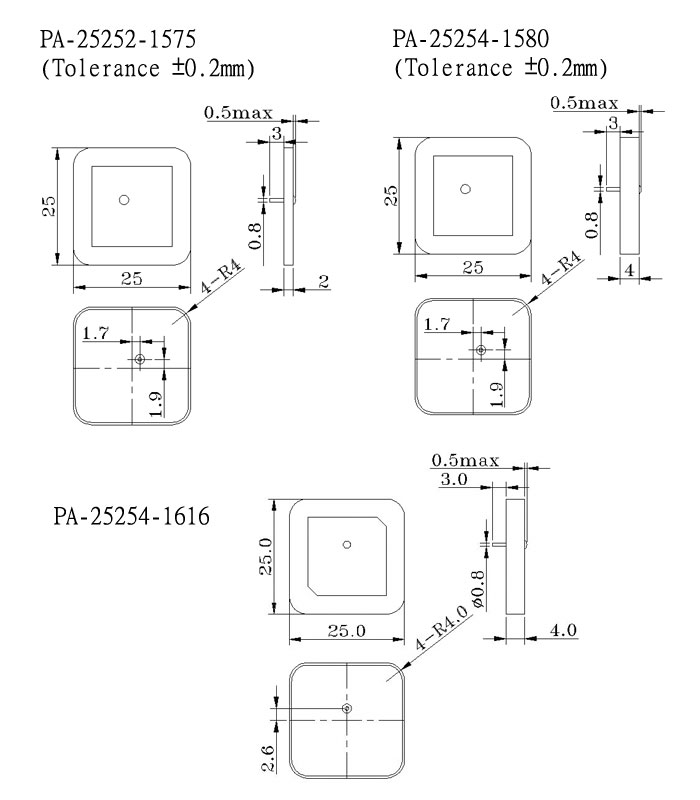

PA-25

Length：1.6mm (Can depend on the customer demand change, the suggestion length1.9mm & 3.0mm)
Outer diameter：0.8mm
