內置式衛星導航天線 - 百展科技有限公司

產品

編號

簡述

PDF

下載

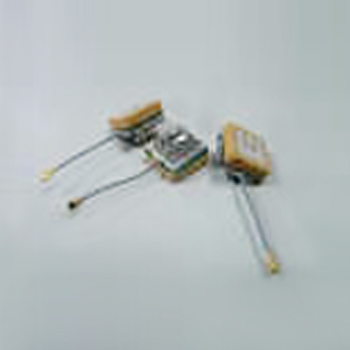

GAM-05

Compact & Sensitive GPS Antenna Module with Excellent Signal Amplification for Mobile Applications

GAM-05A

Compact & Sensitive GPS Antenna Module with Excellent Signal Amplification for Mobile Applications

GAM-12

Compact & Sensitive GPS Antenna Module with Excellent Signal Amplification for Mobile Applications

GAM-15

Gain: 27 dB
Ultra-high sensitivity
Voltage: 2.5~5V DC
Current: 3.3 V: 9.0mA Typ.
15mm (L) x 15mm (W) x 7.6mm (H)

GAM-18

Operation temperature: -30°C to +80°C
Input Voltage: 2.5V~5.5V
Frequency range: 1575.42+1.023MHz
Gain: 28 / 16 dB Typ.

GAM-25

Operation temperature: -30°C to +80°C
Input Voltage: 2.5V~5.5V
Frequency range: 1575.42+1.023MHz
Gain: 28dB Typ.

GAM-25A

Operation temperature: -40°C to +100°C
Input Voltage: 2.5V~5.5V
Frequency range: 1575.42+1.023MHz
Gain: 28dB+/-3db .

GAM-25B

Operation temperature: -40°C to +100°C
Input Voltage: 2.5V~5.5V
Frequency range: 1575.42+1.023MHz
Gain: 28dB+/-3db .

GAM-25P

Voltage: 3.3V DC
Current (DC=3.3 +0.7V): 6+2mA Typ.
37mm (L) x 36.6mm (W) x 6.95mm (H)
Weight: 43+10 g
High temperature stability

GAM-1512

Gain: 27 dB
Ultra-high sensitivity
Voltage: 2.5~5V DC
15mm (L) x 15mm (W) x 7.1mm (H)

GAM-1512P

Gain: 27 dB
Ultra-high sensitivity
Voltage: 2.5~5V DC
15mm (L) x 15mm (W) x 7.6mm (H)

GAM-1515P

Gain: 27 dB
Ultra-high sensitivity
Voltage: 2.5~5V DC
Current: 3.3 V: 9.0mA Typ.
15mm (L) x 15mm (W) x 8mm (H)
